OIL IMMERSED TRANSFORMER manufacturer

Oil Immersed Transformer for Power Distribution Projects

Huasheng is an oil filled transformer manufacturer and supplier in China. We manufactures oil immersed transformers for utility, government, EPC, industrial and renewable energy projects.

Common voltages include 6kV, 10kV, 11kV, 20kV, 22kV, 33kV, and 35kV. Our transformers can meet these requirements.

  • Custom Voltage and Capacity
  • CRGO or Amorphous-Alloy Cores
  • Standard: GB, IEC, IEEE/ANSI, AS/NZS
Request a Quote View Huasheng Factory
OIL FILLED TRANSFORMER SELECTION

Confirm an Oil Filled Transformer Styles

The core and windings of an oil-immersed transformer operate in insulating oil. You can choose model based on voltage, capacity, frequency, materials, and environment.

Send Your Project Specifications

Required Capacity

Start with the connected load, expected demand, power factor and future expansion. 30kVA – 250kVA, 250kVA – 630kVA, 800kVA – 1250kVA, 1600kVA – 25000kVA.

Voltage

Confirm both the incoming grid voltage and the required output voltage. Available primary voltages include 6kV, 10kV, 11kV, 20kV, 22kV, 33kV and 35kV. 110kv and 220kv.

Core and Winding Materials

Choose between a CRGO silicon-steel core or an amorphous-alloy core. Copper and aluminum winding options are available.

Cooling and Insulating Fluid

ONAN is common for oil-immersed distribution transformers. Large units is ONAF. In extreme environments, 45# insulating mineral oil is required.

Frequency and Vector Group

State whether the system uses 50Hz or 60Hz. The vector group must match the grounding method, neutral requirements, system phase relationship and parallel operation plan.

Project Conditions

The ambient temperature, altitude, installation method, and corrosion conditions is different. The types of oil-immersed transformers will vary.

Core Products

Core Oil-Immersed Transformer Models

Huasheng manufactures oil-filled transformers for common distribution voltages and project conditions. The final parameters such as loss, impedance, and size are subject to the technical solution.

Contact Huasheng Select Your Transformer

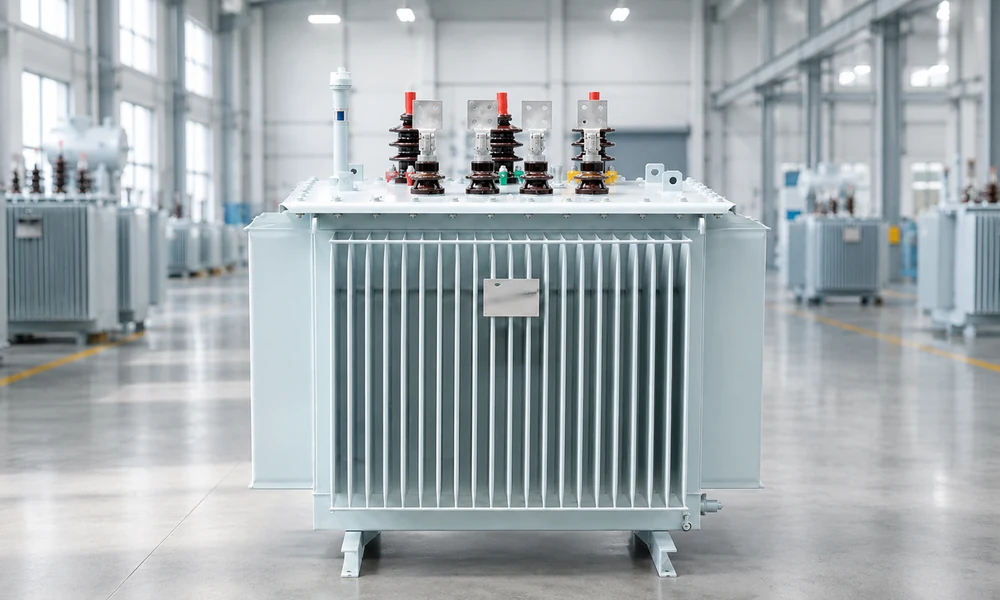

10kV oil-immersed transformer

10kV Oil-Immersed Transformer

S11, S13, S20, and S22 are core models. They are fully sealed oil immersed transformers. Low loss, low noise, and high efficiency. It has excellent energy savings and reduced pollution. Suitable for utility, industrial, commercial, and rural power distribution systems.

Key Specifications
  • Catalog Capacity: 30kVA – 2500kVA
  • High Voltage: 6kV, 6.3kv, 10kV, 10.5kv, 11kV
  • Low Voltage: 0.4kV
  • Core: CRGO Silicon Steel
  • Typical Cooling: ONAN

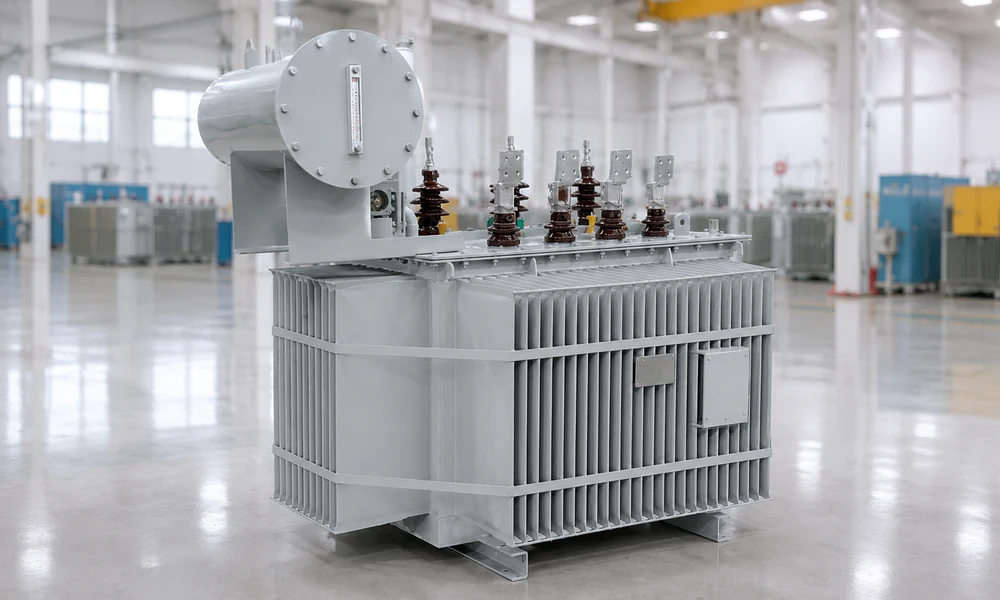

20kV oil-immersed transformer

20kV Oil Immersed Transformer

Compared with 10 kV, the 20 kV three-phase oil immersed transformer has many advantages. Improved power supply capacity, guaranteed voltage quality, and reduced system power loss.

Key Specifications
  • Catalog Capacity: 30 – 2500kVA
  • High Voltage: 20kV or 22kV
  • Secondary Voltage: 0.4kV
  • Typical Tap Range: ±2 × 2.5% or ±5%
  • Typical Vector Group: Dyn11

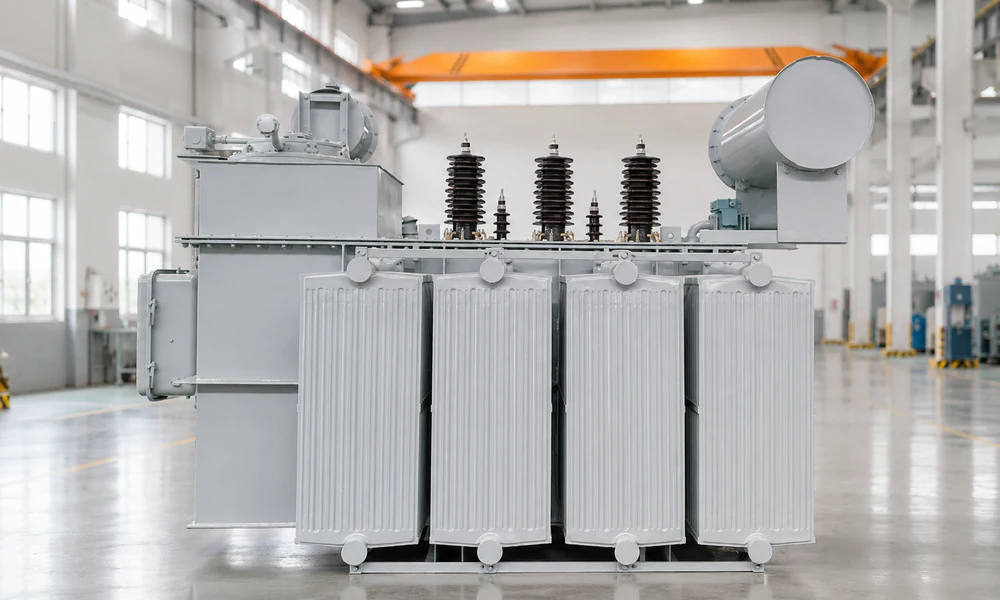

35kV oil-immersed transformer

35kV Oil Immersed Transformer

35kV three-phase oil immersed distribution transformers comply with the standards of ANSI C57.12.00,IEC 60076, GB 1097 (Power transformers) and GB/T 6451. Reduced no-load and load losses.

Key Specifications
  • Starting Capacity: 630kVA
  • Primary Voltage: 33kV, 35kV, 38.5kV
  • Low Voltages: 3.15kV, 6.3kV, 10.5kV or 11kV
  • Typical Vector Groups: Yd11 or YNd11
  • Core: CRGO (Cold-Rolled Grain-Oriented)

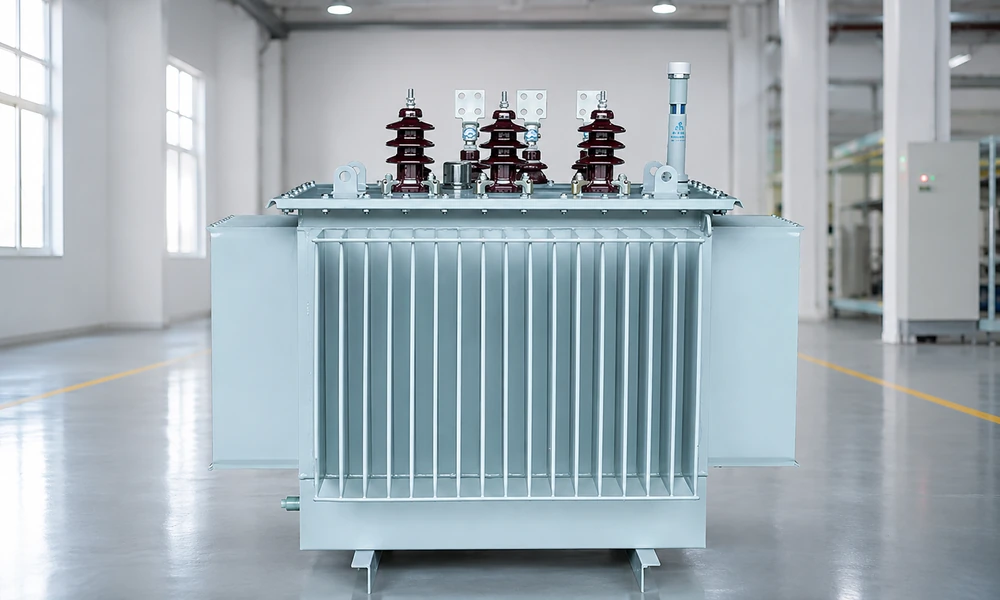

Amorphous-alloy oil-immersed transformer

S(B)H15 Amorphous-Alloy Transformer

Oil filled transformers with an amorphous-alloy core. The core is designed for lower no-load loss. No-load loss reduced by 80%.

Key Specifications
  • Catalog Capacity: 30 – 2500kVA
  • Primary Voltage: 6kV, 10kV or 11kV
  • Secondary Voltage: 0.4kV
  • Typical Tap Range: ±2 × 2.5% or ±5%
  • Core: Amorphous Alloy
TRANSFORMER MATERIAL OPTIONS

Core and Winding Choices for Oil-Filled Transformers

Core and winding materials affect losses, weight and price. You need to confirm your specific needs with Huasheng team.

Contact Huasheng Transformer Expert

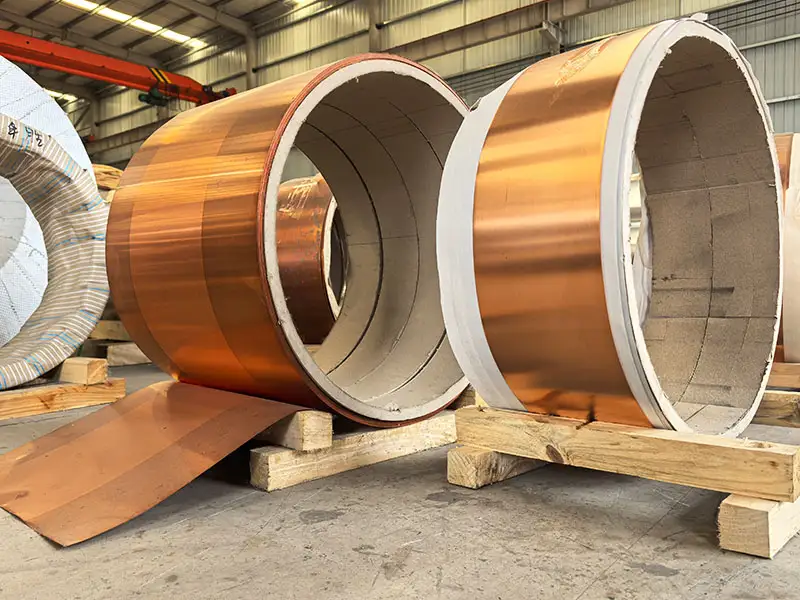

Transformer copper winding raw materials

Transformer Core Options

CRGO Silicon-Steel Core

CRGO (Cold-Rolled Grain-Oriented) silicon steel cores is widely used in oil immersed transformers. It supports a broad range of voltages and capacities.

Amorphous-Alloy Core

An amorphous-alloy core is designed for lower no-load loss. reduced by 80%. More efficient energy saving.

Selection Note:

Compare the load profile, efficiency requirement, purchase cost and expected operating period before choosing the core.

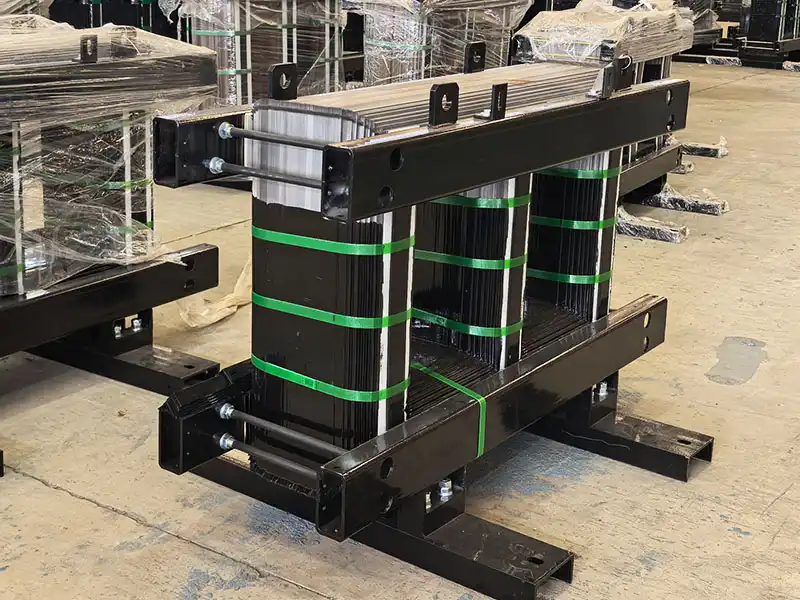

Transformer silicon steel sheet core materials

Transformer Winding Options

Full Copper Winding

Copper has higher electrical conductivityand lightweight. Reduce Load losses. Of course, copper also has a higher material cost.

Aluminum Winding

Aluminum usually has a lower material cost and lower weight. If you have a temporary project and limited budget, you can choose aluminum windings.

Selection Note:

Changing the winding material affects losses, temperature rise, short-circuit strength, weight and price.

BEFORE YOU CHOOSE A SUPPLIER

Resolve Your Worried Problems

A low liquid immersed transformer price does not always mean the same product. You should compare the materials, losses, dimensions, tests, documents and delivery terms before choosing a factory.

Oil Tank and Sealing

Huasheng checks the tank, sealing surfaces, installed components and oil system before shipment.

Core and Winding Materials

The technical document records the core material, winding material, insulating fluid and main accessories.

Loss and Noise

Losses, impedance, temperature-rise limits and noise requirements are reviewed before production.

Local Environment

Our team reviews the environmental data. Oil, insulation, cooling and coating are then selected for those conditions.

Dimensions and Connections

Outline drawings, mounting dimensions, terminal positions and cable requirements are confirmed before production.

Documents and Delivery

The document list, test scope, FAT plan, packing method and delivery schedule are confirmed with the order.

Related Industries

Oil Immersed Transformer Applications

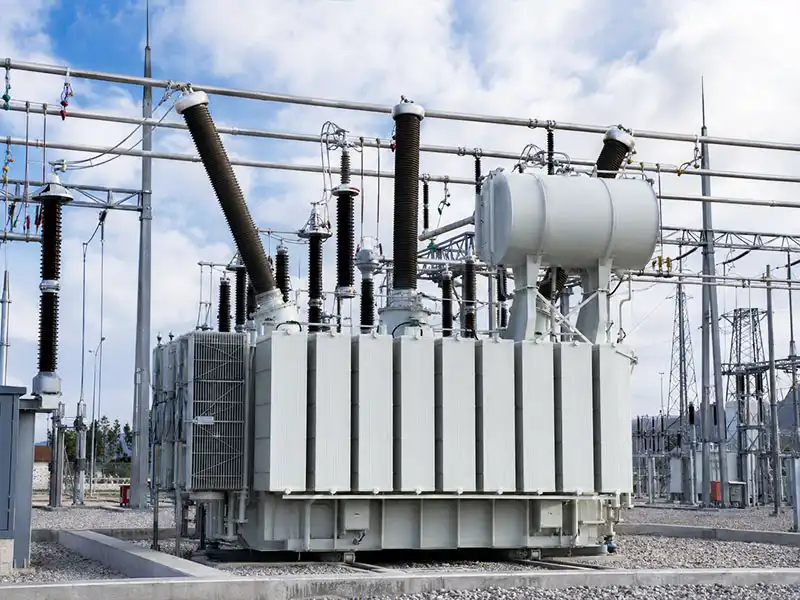

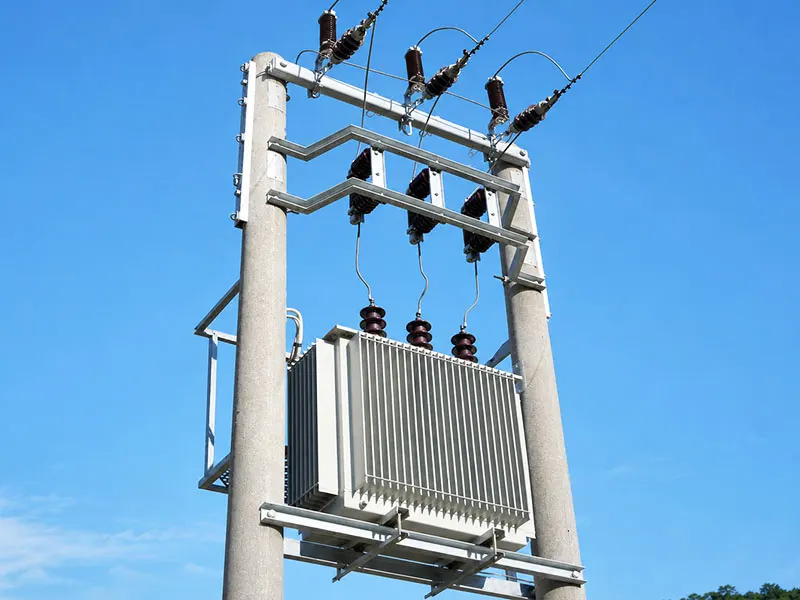

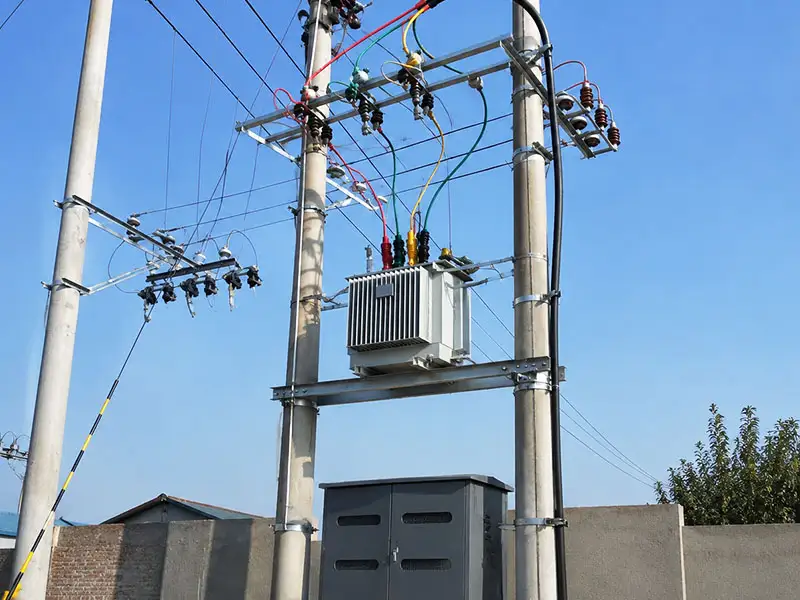

Oil filled transformers are widely used in outdoor, utility, industrial and renewable energy projects.

The right configuration depends on the load, voltage, installation method and local environment.

Unclock Your Project Solutions
OIL FILLED TRANSFORMER FAQ

Questions Buyers Ask
Before Ordering

Whether you’re custom or wholesale an oil-immersed transformer, you’ll encounter problems. If you can’t find answer, contact Huasheng experts.

Contact Huasheng Transformer Experts

FACTORY QUOTE

Are Your Ready Custom or Wholesale Oil Immersed Transformer

Send your project requirements directly to Huasheng transformer factory in China.

Our team will review the voltage, capacity, frequency, core, application and more details. Then you will receive a quotation.

Request Huasheng Factory Quote
